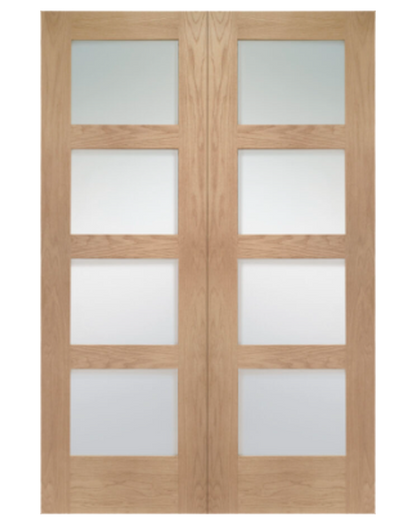

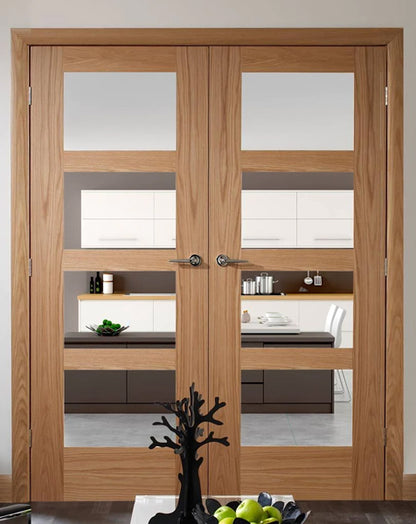

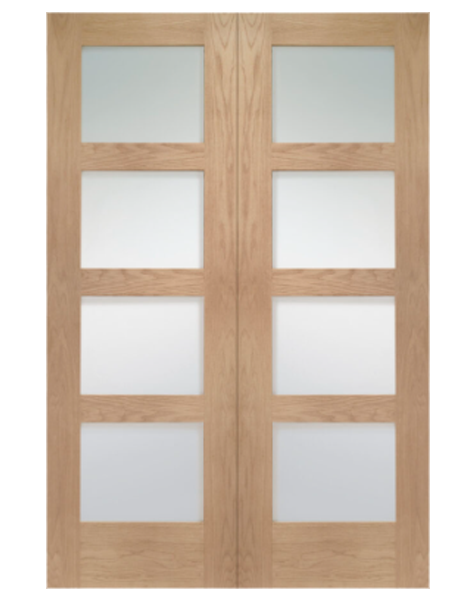

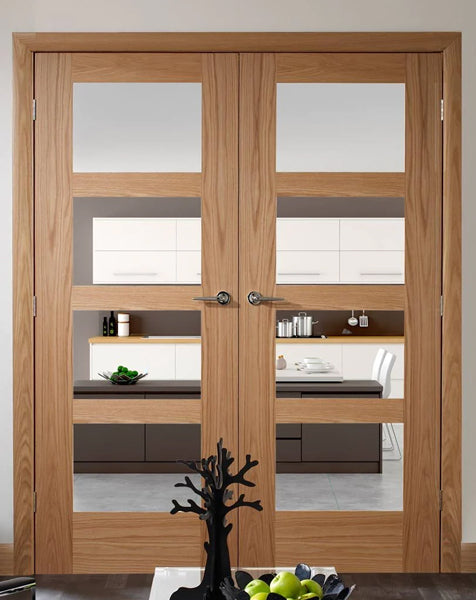

Shaker Internal Oak Rebated Door Pair with Clear Glass

• Engineered construction for added strength, stability and performance
• Product supplied unfinished, ready to paint or stain
• A-Grade American White Oak Veneer
• FSC Certified product with full chain of custody
• 40mm thick Rebated doors
• Genuine Oak lipping allowing for 6mm to be trimmed off the top and bottom of the door to a maximum reduction of 12mm in height. 6mm can be removed from the width of each door from the hinge edge only, and no reduction can be made to the rebated edge

• Family - Shaker
• Finish - Unfinished
• Material - Oak
• Use - Double door,Glazed
• Colours by XL - Yes
• Colour Description - Oak
• Texture - Natural
• Construction Material - Oak veneer
• Core Material - Particleboard
• Core Construction Type - Engineered
• Glazing - Yes
• Glazing Type - 5mm safety glass
• Glazing Finish - Clear
• Glazing Safety Specifications - Toughened
• Glazing Certifications - (2013 version): Part K amalgamates the now defunct Approved Document N,The glass is toughened to either BS6206 / BS 6262 Part 4 or BS EN12150 and BS EN 12600 as stipulated in Approved Document K of the Building Regulations
• Beading - Yes
• Beading Material - White Oak
• Glue Resin - D3
• Door Handing - Right hand towards
• Lippings - Yes
• Lipping Details - Lipped on all four sides
• Lipping Material - Oak
• Lipping Thickness Bottom (mm) - 11
• Lipping Thickness Sides (mm) - 11
• Lipping Thickness Top (mm) - 11
• Veneer - Yes
• Veneer Material - Solid white oak
• Veneer Thickness (mm) - 0.6

Door Handing - Right hand towards

Trimmable - Yes

Overall Total Trimming Width (mm) - 12

Overall Trimming Height (mm) - 12

Maximum Trimming From Top (mm) - 6

Maximum Trimming From Bottom (mm) - 6

Maximum Trimming From Each Side (mm) - 6

Trimming Notes - Rebated door pairs are not to be trimmed on the rebated edges.

Recommended Latch Size - 65mm

Door Preparation - Light sanding using 240g sand paper

Number of Hinges Required - 6

Type of Hinge Required - 3" Butt

Recommended Finish - Osmo door oil, high solid 3060 or 3033. Good quality waterbased clear varnish.

Fitting Instructions

HANDLING AND STORAGE - Doors should always be stored flat, ideally in the same room where they are to be installed. Protect the door from damp and dirt by leaving it in its protective packaging until ready for finishing and fitting. Doors should not be fitted where extremes of temperature or humidity may occur, e.g. in a newly plastered room or near a sauna. In new build situations the doors should only be fitted when the property is ready for final decoration.

INSTALLATION - When trimming a door to fit, 6mm can be removed from the top and bottom of the door to a maximum reduction of 12mm in height. 6mm can be removed from the width of each door from the hinge edge only, and no reduction can be made to the rebated edge: allowing for a maximum reduction of 12mm in width from the entire door pair. Any reduction must be removed evenly from each edge of the door, e.g. to trim your door by 8mm in width, remove 4mm off each side. The protection film on the glass should not be removed until painting or staining has been completed. Three hinges should be used to hang all doors, to prevent warping or bowing. Latches and locks should not be fitted adjacent to door mid-rails where the joint may be compromised. All hardware screw holes should be pre-drilled to prevent splitting of the timber.

FINISHING - Doors will require a light sanding prior to finishing using a fine grade sandpaper (grit number 240 or 320). Use masking tape when finishing glazed doors to ensure that the finish does not go on the glass. All timber surfaces should be fully finished. Failure to treat all the timber surfaces may lead to excessive changes in moisture content which will cause the timber to shrink or swell, possibly causing splits and distortion. Please refer to the finish manufacturer’s application instructions for further details. Once you have completed finishing the door, remove the masking tape and the protective film from the door. To remove the film simply take a craft knife and cut around the entire glass aperture, ensuring the corners have been cut. Finally, peel off the film from the glass surface to leave a smooth finish.

DO - Use a good quality paint, stain or varnish suitable for veneered doors. Apply first coat of finish immediately after unpacking doors from protective packaging. Apply coats equally to all faces and edges including the top and bottom of the door. Use the same number of coats for lock, latch and hinge cut-outs.

DO NOT - Use oils, wax, dyes or preservative treatments Use thinned/mixed paints or stains. Mix incompatible products, e.g. paint on one door face and stain on the opposite face.

MAINTENANCE - To prolong the natural beauty of your door regularly clean the surface with a damp cloth. If the finish appears to fade after a few years simply apply a single coat of finish to renew its lustre.

• FSC Certified - Yes
• FSC Certification Number - SA-COC-001476
• Manufacturers Warranty - Yes
• Full or Limited Warranty - Limited
• Warranty Length - 10 Years
