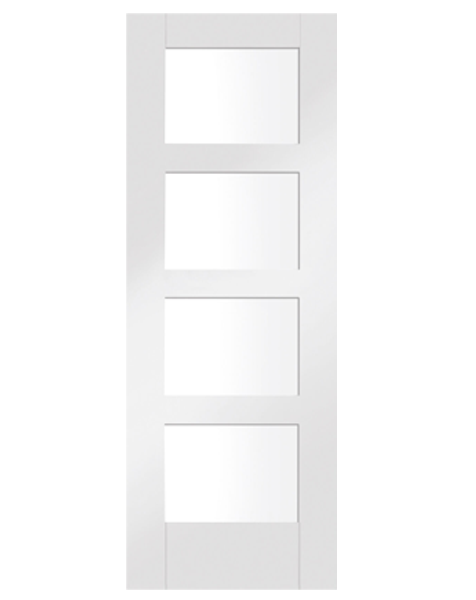

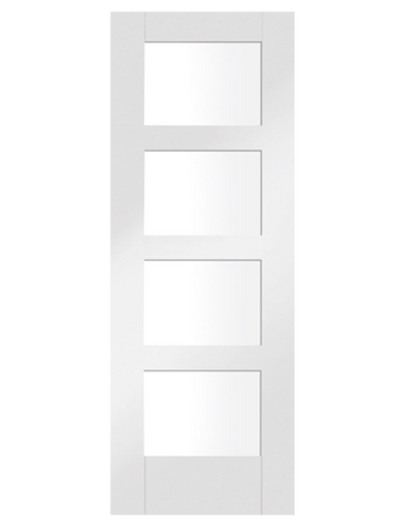

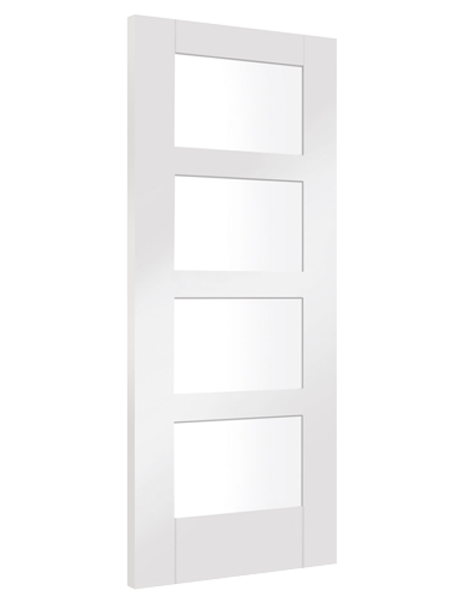

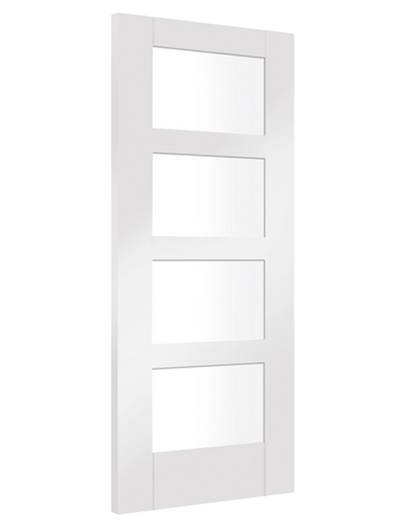

Shaker 4 Light Internal White Primed Fire Door with Clear Glass
Shaker 4 Light Internal White Primed Fire Door with Clear Glass
Couldn't load pickup availability
Installation Required?
Installation Required?
If you require this door to be installed, please do contact us before placing your order by clicking here!
Combining a classic shaker design with clear glass gives the Shaker fire door a real timeless look that complements any home. The clear glass allows for light to pass seamlessly between rooms to enable darker rooms to benefit from natural daylight. Supporting panelled, fire and bi-fold doors complement this range.
Please note primed doors require decorating
Share
![Shaker 4 Light Internal White Primed Fire Door with Clear Glass](http://www.thedoorshop.uk/cdn/shop/files/Shaker4LightInternalWhitePrimedFireDoorwithClearGlass.jpg?v=1699282944&width=1445)
![Shaker 4 Light Internal White Primed Fire Door with Clear Glass](http://www.thedoorshop.uk/cdn/shop/files/SHAKER_1_27d0948f-99d2-47e9-bbc5-18617a6ec398.png?v=1699282944&width=1445)
![Shaker 4 Light Internal White Primed Fire Door with Clear Glass](http://www.thedoorshop.uk/cdn/shop/files/SHAKER_2_63517cfd-2f8e-4580-8a29-b2b02342e98b.png?v=1699282944&width=1445)
ADDITIONAL INFORMATION
FEATURES
- Engineered construction for added strength, stability and performance
- Double coated and ready for final finishing
- FSC® Certified product with full chain of custody
- FSC Certified product with full chain of custody
- We recommend using a 75mm latch for this door.
- Lipping allowing for 2mm to be trimmed off all edges of the door
PRODUCT SPECIFICATIONS
- Family - Shaker
- Finish - White Primed
- Material - MDF
- Use - Fire door,Glazed
- Colours by XL - Yes
- Colour Description - White
- Texture - Smooth
- Glazing - Yes
- Glazing Type - 6mm safety glass
- Glazing Finish - Clear
- Glazing Safety Specifications - Toughened
- Glazing Certifications - (2013 version): Part K amalgamates the now defunct Approved Document N,The glass is toughened to either BS6206 / BS 6262 Part 4 or BS EN12150 and BS EN 12600 as stipulated in Approved Document K of the Building Regulations
- Glue Resin - D3
- Door Handing - Reversible
- Lippings - Yes
- Lipping Details - Lipped on all four sides
- Lipping Material - Poplar
- Lipping Thickness Bottom (mm) - 11
- Lipping Thickness Sides (mm) - 11
- Lipping Thickness Top (mm) - 11
INSTALLATION
Door Handing - Reversible
Trimmable - Yes
Overall Total Trimming Width (mm) - 4
Overall Trimming Height (mm) - 4
Maximum Trimming From Top (mm) - 2
Maximum Trimming From Bottom (mm) - 2
Maximum Trimming From Each Side (mm) - 2
Recommended Latch Size - 65mm
Door Preparation - Light sanding using 240g sand paper
Number of Hinges Required - 3
Type of Hinge Required - 4" Butt
Recommended Finish - Good Quality paint suitable for engineered, veneered timber doors utilising D3 adhesive beneath the veneer.
Fitting Instructions
HANDLING AND STORAGE - Doors should always be stored flat, ideally in the same room where they are to be installed. Protect the door from damp and dirt by leaving it in its protective packaging until ready for finishing and fitting. Doors should not be fitted where extremes of temperature or humidity may occur, e.g. in a newly plastered room or near a sauna. In new build situations the doors should only be fitted when the property is ready for final decoration.
INSTALLATION - When trimming a door to fit, 2mm can be removed from each edge of the door to a maximum reduction of 4mm in both the height and width. Any reduction must be removed evenly from each edge of the door, e.g. to trim your door by 8mm in width, remove 4mm off each side. Three hinges should be used to hang all doors, to prevent warping or bowing. Latches and locks should not be fitted adjacent to door mid-rails where the joint may be compromised. All hardware screw holes should be pre-drilled to prevent splitting of the timber.
FINISHING - All fully finished doors will require any bare timber areas caused by trimming and hardware fitting, to be adequately treated before final fitting. Failure to treat all the timber surfaces may lead to excessive changes in moisture content which will cause the timber to shrink or swell, possibly causing splits and distortion. Any unfinished areas will require a light sanding prior to finishing using a fine grade sandpaper (grit number 240 or 320). Please refer to the finish manufacturers application instructions for further details.
DO - Use a good quality paint, stain or varnish suitable for veneered doors Apply to all unfinished, trimmed or cut-out areas Always apply the manufacturers recommended number of coats equally.
DO NOT - Use oils, wax, dyes or preservative treatments Use thinned/mixed paints or stains Mix incompatible products, e.g. paint on one door face and stain on the opposite face.
MAINTENANCE - To prolong the natural beauty of your door regularly clean the surface with a damp cloth. If the finish appears to fade after a few years simply apply a single coat of finish to renew its lustre.
GUARANTEES & ACCREDITATIONS
- FSC Certified - Yes
- FSC Certification Number - SA-COC-001476
- Fire Rated - Yes
- Fire Rating - 30 Minutes
- Manufacturers Warranty - Yes
- Full or Limited Warranty - Limited
- Warranty Length - 10 Years
